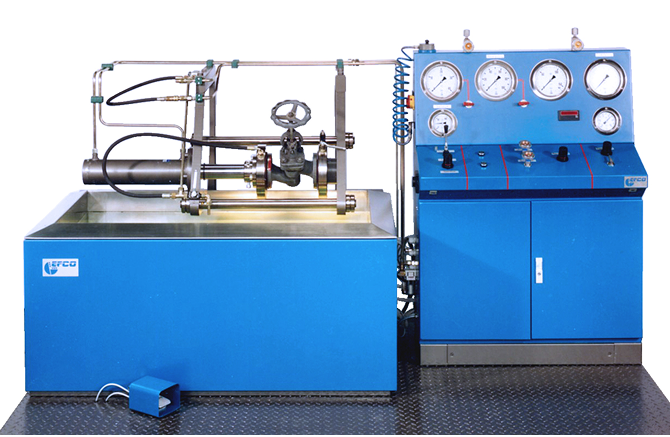

Horizontal Valve Test Bench PS-H75
Horizontal test benches for control valves and shut-off valves
Horizontal valve test benches in various dimensions are robust, durable and tailored to your needs.
- Rugged construction
- Simple and manual operation
- clamping forces infinitely variable
- Suitable for pressure testing of shut-off and control valves
- Water tank made of stainless steel (VA)
- All parts of the clamping device are coated to protect against corrosion
- High quality aluminum front panels with language-independent operating symbols
- High quality pressure gauges incl. inspection certificates
- High quality control elements
- Proportional control (automatic control of the clamping force for gentle clamping of the test specimens during the test procedure) (up to PS-H100 optionally available, beyond that standard)
- Individual construction according to customer requirements
- If required with automatic drive
- Shut-off valves
- Control Valves
- DN 25-400 (DN 1"-16")
- Working range can be extended by external testing
- 75 t up to 1500 t
- Water up to 410 bar (5,946 psi)
- Air/nitrogen up to 300 bar (4,351 psi)
Other nominal diameters, test pressures and test media on request.
