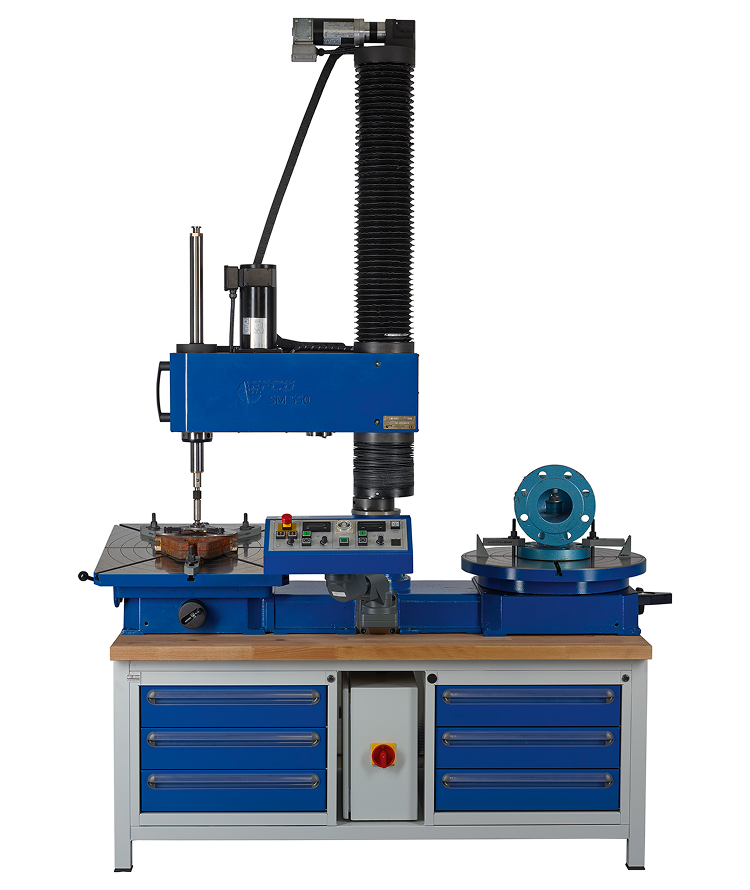

Stationary lapping machine (SM Series)
Lapping and Grinding machines for repairing valve sealing surfaces.
Grinding and lapping machine for use in the workshop for repairing sealing surfaces in gate valves, valves, safety valves, non-return valves, gate valve wedges, etc. These machines are characterized in particular by their stable and robust design as well as a compact and modular machine concept. A second rotary or tilting table can be retrofitted at any time. The lapping equipment is included as standard in the SM series machines.
- Stable and robust design
- Various machine configurations can be selected according to customer requirements
- Efficient working due to swivelling and clampable column
- Swivelling control unit
- Optionally available with rotary tables and/or tilting tables (SM-550)
- Optionally available as centric or eccentric version (SM-750)
- Tilt table:
- Size: 550 mm x 550 mm (21.7" x 21.7")
- Tilt angle: ± 12°
- Max. Fitting size: Ø 900 mm (36")
- Max. Fitting height: 800 mm (32")
- Max. weight of the armature: 450 kg
- Turntable:
- Size: Ø 550 mm (21.7")
- Adjustment travel*: 0 mm-20 mm (0"-0.78")
- Max. Valve size: Ø 900 mm (36")
- Max. Max. fitting height: Ø 830 mm (33")
- Max. weight: 450 kg
- Drive: electric (230/120V, 50/60 Hz)
By moving the turntable and superimposing the rotary movements (work spindle to turntable), an optimum sealing surface is created for safety valves.
- Work spindle: optionally centric or eccentric
- Eccentricity: 0 mm-20 mm (0"-0.78")
- Tilt table: 750 mm x 750 mm (29.5" x 29.5")
- Angle of inclination: ± 12°.
- Max. Valve size: Ø 950 mm (38")
- Max. fitting height: 1000 mm (40")
- Max. weight of fittings: 2500 kg
- Drive: electric (380-480 V, 50/60 Hz)
The machine spindle of the SM-750 is equipped with an adjustable eccentric, which allows the machining of safety valves. Eccentric and grinding movement are driven separately. The SM-750 is available with either 1 or 2 tilting tables.
