Versatile and mobile lathe for machining sealing surfaces and bores

The EFCO-TDs are portable lathes for the precise machining of bores and sealing surfaces in fittings, cylinders, pumps, turbine housings, etc. They are suitable for use on site and in the workshop, in power plants, for valve service, for the chemical and petrochemical industry, in steel construction, in shipyards, oil fields, etc.



Advantages

  • High stability even with greater chip removal
  • Infinitely variable, automatic axial and radial feeds
  • Handy control panel, fine adjustments on the gear housing (no intervention on the turning head necessary)
  • Ideally suited for turning out entire valve seats
  • Tool holder for square standard turning tools
  • Extension of the maximum working depth possible

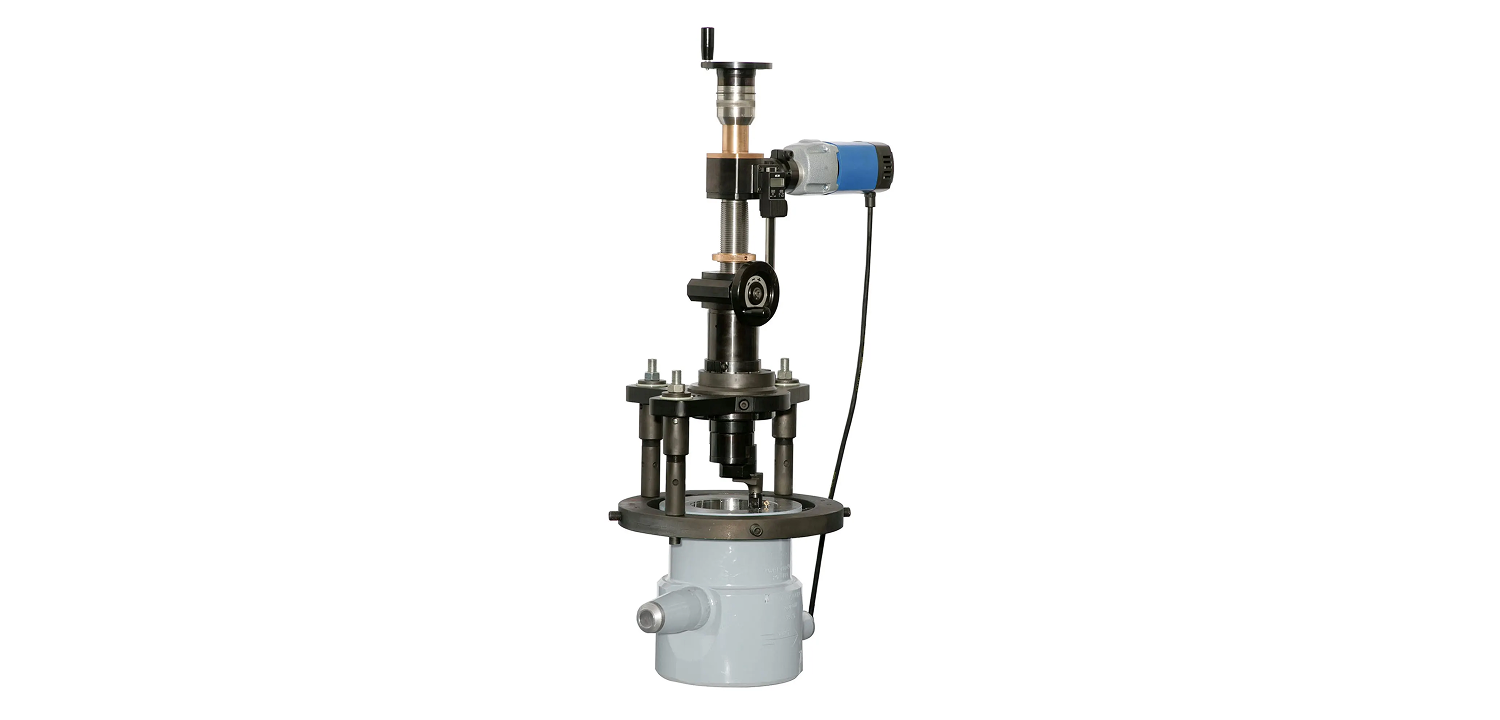

TD-03

  • Machining Ø: 0-150 mm (0-5.9″)
  • Working depth: 250 mm (9.8″)
  • Radial stroke: 20 mm (0.79″)
  • Axial stroke: 100 mm (3.94″)
  • Drive: electric 230/120 V, 50/60 Hz or pneumatic (6-7 bar)

TD-1.02

  • Machining Ø:0-400 mm (0-15.7″)
  • Working depth: 450 mm (17.7″)
  • Radial stroke: 40 mm (1.57″)
  • Axial stroke: 200 mm (7.87″)
  • Drive: electric 230/120 V, 50/60 Hz



High-speed grinding attachment optionally available

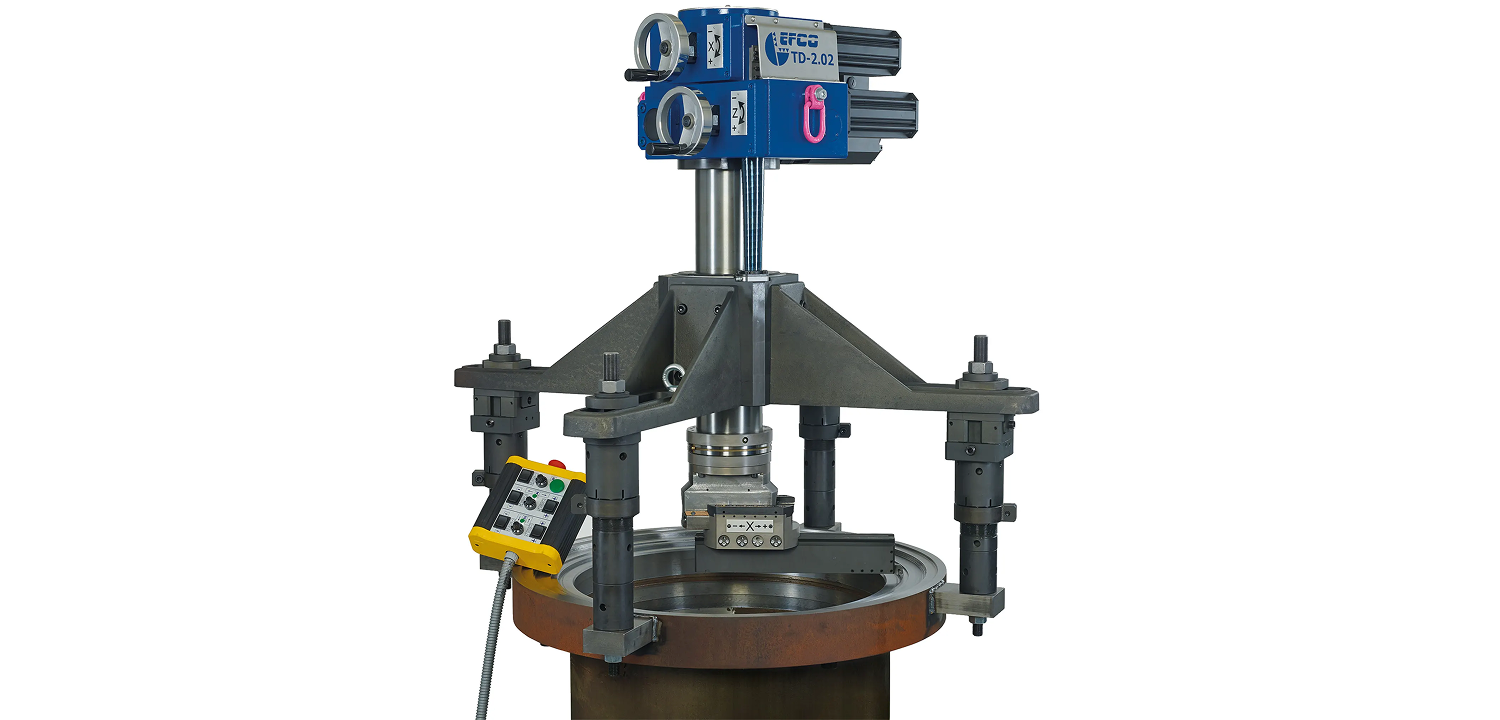

TD-2.02

  • Machining Ø:0-800 mm (0-31.5″)
  • Working depth: 600 mm (23.6″)
  • Radial stroke: 60 mm (2.36″)
  • Axial stroke: 100 mm (3.94″)
  • Drive: electric 380–480 V, 50/60 Hz or pneumatic (6-7 bar)



High-speed grinding device optionally available
