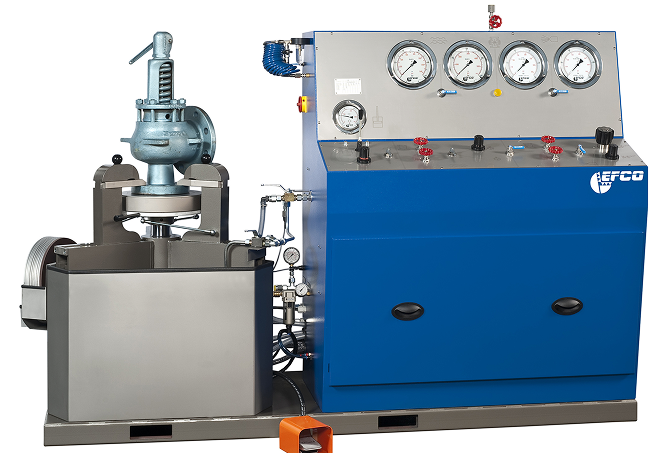

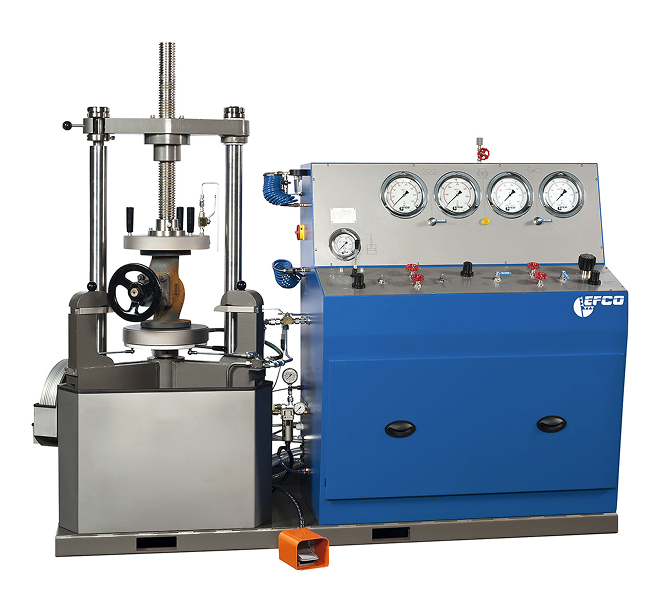

Vertical modular test benches
Proven technology standardised and in modular design. Cost-effective and short delivery time. Basic program with variants and many options.
Features
- •Rugged construction
- •Simple and manual operation
- •clamping forces infinitely variable
- •Suitable for pressure testing of shut-off/control fittings and safety valves
- •Water tank made of stainless steel (VA)
- •All parts of the clamping device are coated to protect against corrosion
- •High quality aluminum front panels with language-independent operating symbols
- •High quality pressure gauges incl. inspection certificates
- •High quality control elements
- •Optionally with or without upper yoke
Testing of
- •Shut-off valves
- •Control Valves
- •Safety valves
Available working ranges
- •DN 15-250 (DN 1/2"-10")
- •DN 25-400 (DN 1"-16")
- •Working range can be extended by external testing
Test pressures
- •Water up to 5580 psi (385 bar)
- •Air/nitrogen up to 300 bar (4350 psi)
Other nominal diameters, test pressures and test media on request.
